This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs MCU architecture into an 8-pin package and features 4 channels for the10-bit Analog-to-Digital (A/D) converter, 1 channel comparator and 128 bytes of EEPROM data memory. This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.
High-Performance RISC CPU
-
Only 35 single word instructions to learn
-
All instructions are single cycle (1µs) except for program branches
-
Operating speed: DC – 20MHz clock input
-
Interrupt Capability
-
8-Level Deep Hardware Stack
-
Direct, Indirect and Relative Addressing Modes
Peripheral Features
-
8-bit real time clock/counter(TMR0) with 8-bit programmable prescalar
-
6 I/O pins with individual direction control
-
High current sink/source for direct LED drive
-
Analog-to-Digital Converter module: 10-bit resolution, Programmable 4-channel Input
-
Enhanced Timer1
-
In-Circuit Serial Programming (ICSP) via pins
Low Power Features
-
Standby Current: 1 nA @ 2.0V, typical
-
Operating Current: 8.5 µA @ 32 kHz, 2.0V, typical, 100 µA @ 1 MHz, 2.0V, typical
-
Watchdog Timer Current: 300 nA @ 2.0V, typical
-
Timer1 Oscillator current: 4 µA 32 kHz, 2.0V, typical
Special Microcontroller Features
-
Internal and External Oscillator Options
-
Power Saving SLEEP Mode
-
Wide operating voltage range – 2.0V to 5.5V
-
Industrial and Extended Temperature Range
-
Low Power Power-on Reset (POR)
-
Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
-
Brown-out Detect (BOT)
-
Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
-
Multiplex MCLR/Input-pin
-
Interrupt-on-pin Change
-
Individual Programmable Weak Pull-ups
-
Programmable Code Protection
-
High Endurance FLASH/EPROM Cell
Package Include:
-

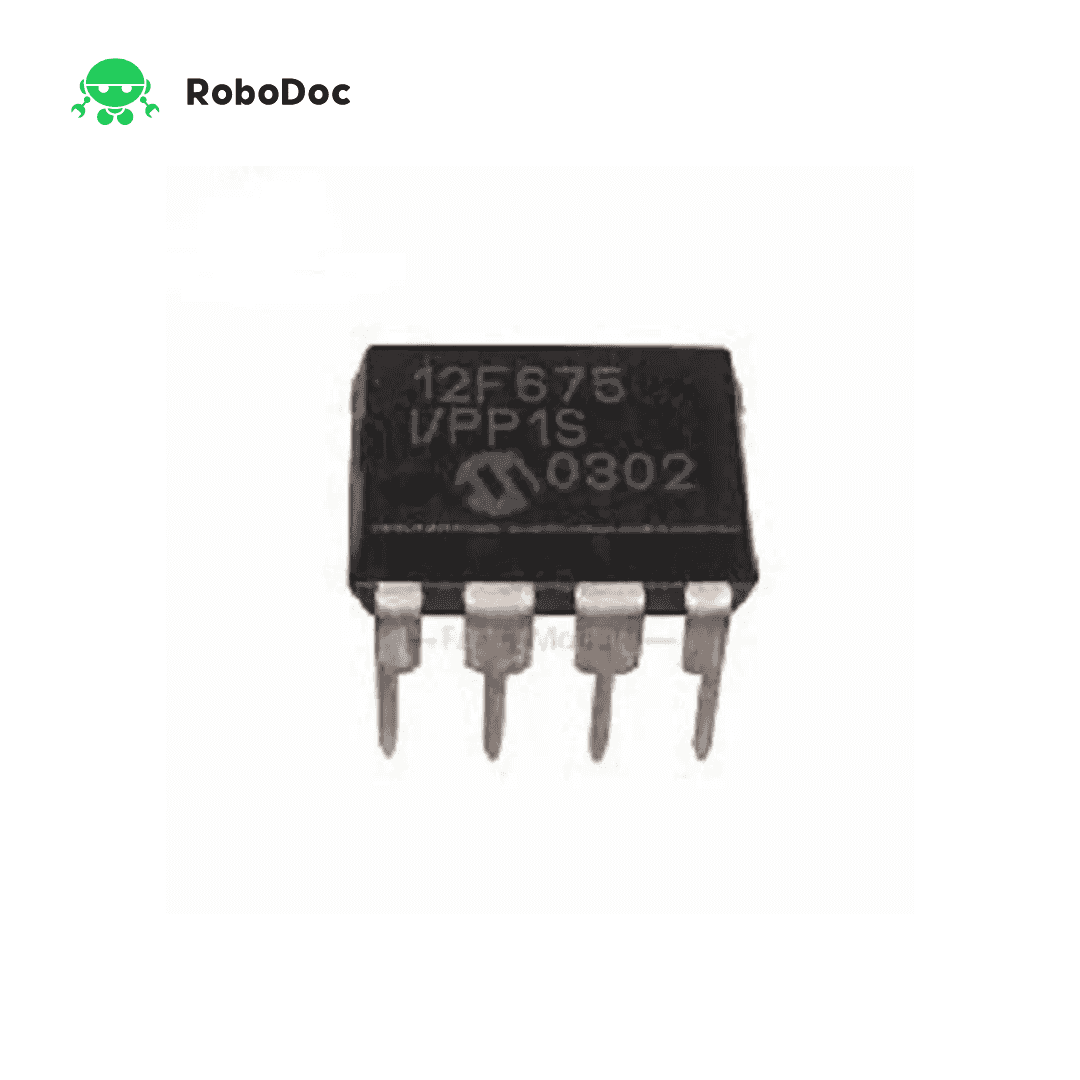

1 x PIC12F675 Micro Controller IC
