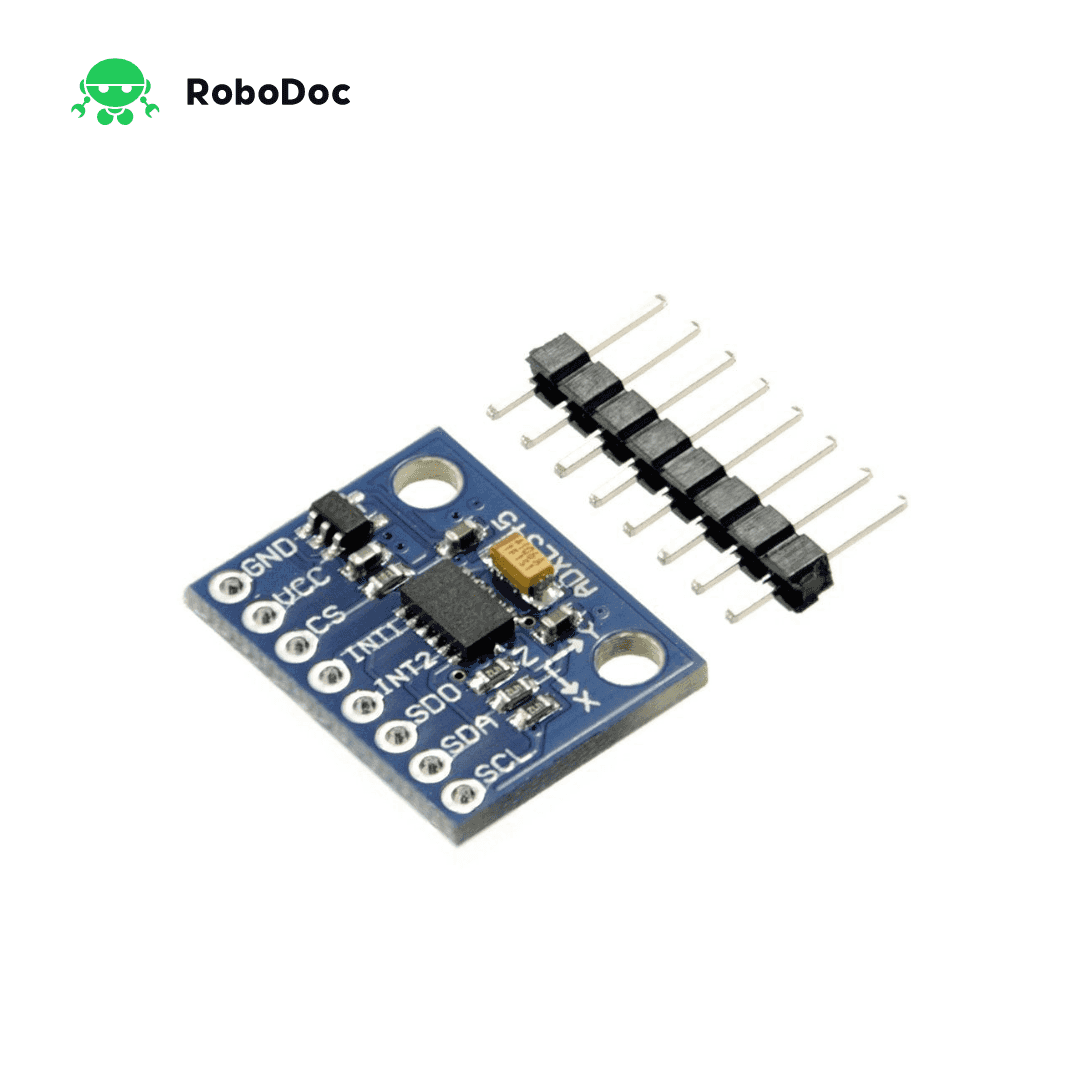

GY-291 ADXL345 ADXL 345 3-Axis Digital Acce-lerometer Module Accel-eration Of Ti-lt Module IIC SPI Transmission Triple Axis Accel-erometer Module I2C Interface It is Breakout board for the Analog Device’s ADXL345 Triple axis accelerometer with Voltage regulator onboard. The module is populated with MOSFET based Voltage level conversion circuitry to enable you to interface different type of microcontrollers (3V3 & 5V) . Apart from the above all necessary components like decoupling capacitors , filter capacitors ,Pull up resistors and LED are also populated on board. So out of the box you are ready to go. The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurement at up to ±16 g. Digital output data is formatted as 16-bit two’s complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface. The ADXL345 is well suited to measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0°.
The ADXL345 is a small, thin, low power, 3-axis accelerometer with high resolution (13-bit) measurements at up to ± 16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface. The ADXL345 is well suited to measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0° . Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation.
