Product features
-
Fine spray particles, large amount of atomization, non-wet desktop.
-
Low drive voltage, low power, low impedance, stable waveform, high conversion efficiency;
-
Spray in the middle of the atomizer, 5um ultra-fine spray aperture, 740 ultra-dense spray hole number;
-
Coating process with silver oxide protection layer on the surface of the atomized sheet, long service life.
Specifications:
-

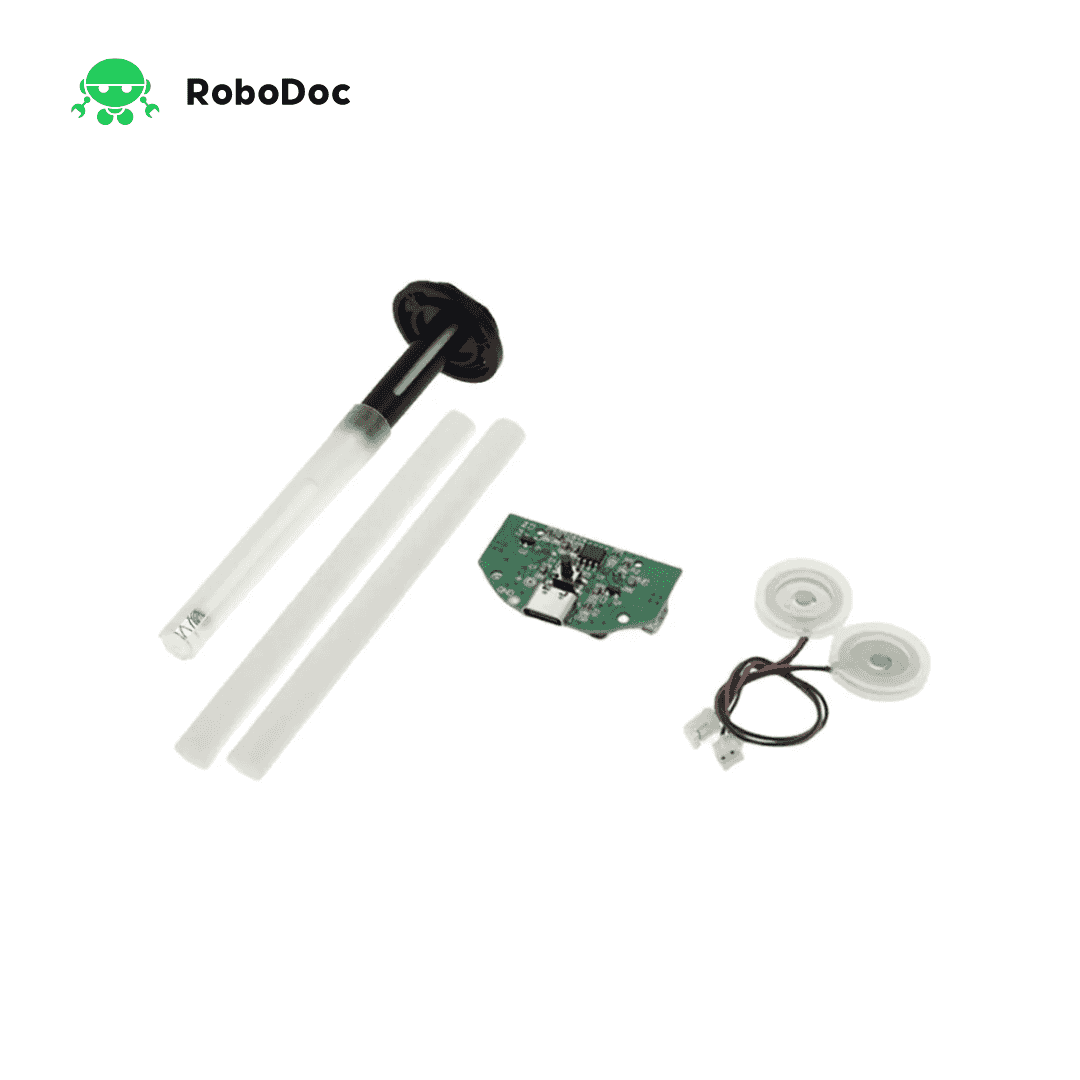

Product name: Atomizing drive circuit board
-
Type: AK - 204
-
Rated voltage: DC 5V
-
Rated current: 300mA
-
Power: 2-3 w
-
Resonant frequency: 108-110khz Material:1.2mm FR-4
-
Board size: 34x22.5x17mm
-
The net diameter of atomizing steel sheet is 16mm, the outer diameter of silica gel ring is 20mm, and the length of wire is 95mm. (red line positive, black line negative)
Directions for use
Introduction to Spray Mode
▲ Continuous spray mode: Press the switch for the first time
LED light on, continuous spray mode, double spray atomization, spray 3 hours after automatic shutdown protection.
▲ Alternate spray mode: Press the switch for the second time
LED lights alternately bright, alternating spray mode, unilateral spray for 20 seconds, then the other side spray for 20 seconds, in turn cycle, spray for 5 hours, automatic shutdown protection.
▲ Intermittent spray mode: Press the switch for the third time
LED lights flashing, intermittent spray mode only unilateral spray for 10 seconds, stop spray for 5 seconds, in turn cycle, spray for 12 hours, automatic shutdown.
▲ Shutdown: Press the switch for the fourth time
