Operating voltage: DC 3.3V-5V
Operating Current:>1A
Operating temperature: -10 C - +50 C
Mounting Hole: M3 screws
Detection distance: 1mm to 60 CM adjustable, the closer the distance,the more stable performance, and white reflection farthest.

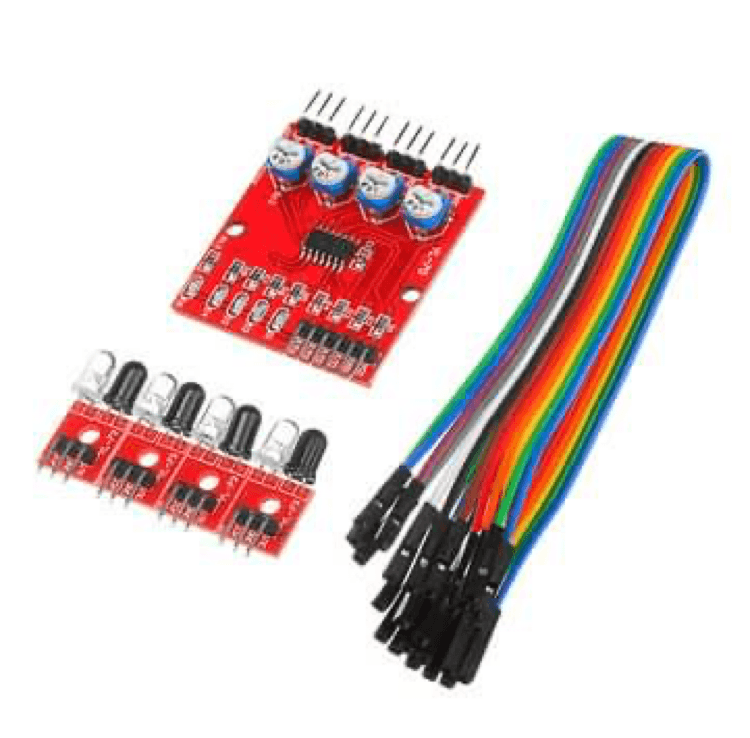

Size(mm): central control board:42(L) × 38(W) × 12(H)
small board:25(L) × 12(W) × 12(H)
Output Interface: 6-wire (1234: signal output, +: positive supply -: ground)
Output signal: TTL level
