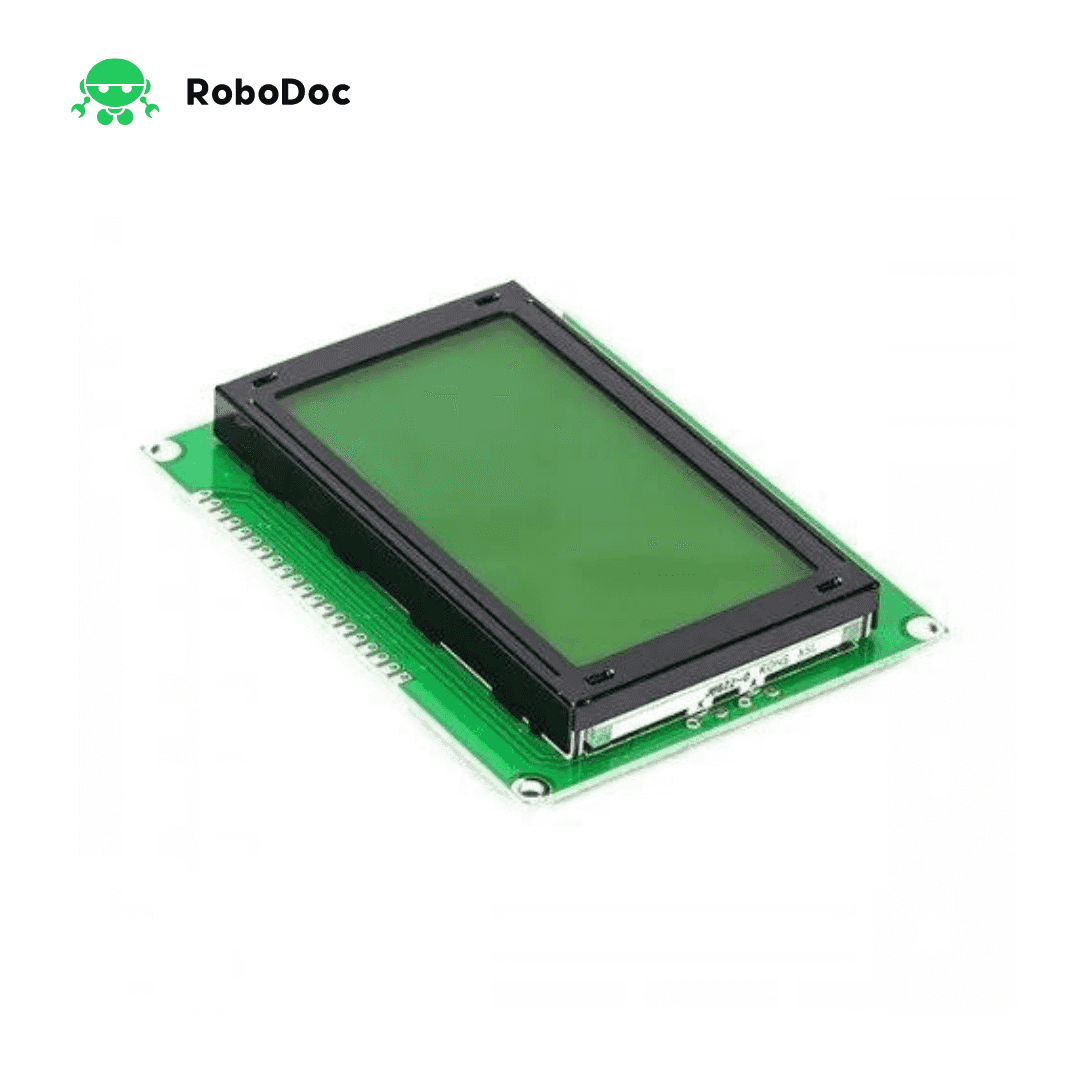

This is a framed graphical LCD 64×128 with LED backlight. This unit is a very clear STN-type LCD with a simple command interface. This new module includes the negative voltage circuitry on board! Utilizes the extremely common KS0108B parallel interface chipset (datasheet). Interface code is freely available.
Specifications:
-
Display Color: White
-
Dot Matrix:128×64
-
Driver IC: ST7920
-
Interface: 8-bit 6800,8-bit 8080,IIC.
-
Weight:70g
-
Wide range of operating temperature: -40°C to 70°C
-
stn positive or negative LCD screen
-
super light white or White-Blue LED back light
-
built-in booster for LCD driving supply
-
operating-temperature-20 ~70 degree storage-temperature-30~80 degree, high reliability
-
outline dimension: 93. 0x70. 0x15. 3max (t)
-
LCD Graphic 128x64 Display ST7920 12864B
Features :
-
Blue background with 128 x 64 ‘monochrome’ white pixels
-
Low power white LED back-light
-
The LCD is driven by onboard 5V parallel interface chipset KS0108 and KS0107. They are extremely common and well documented
-
PCB is 93 mm x 70 mm (~ 3.66″ x 2.75″) and the viewing area is 71 mm x 39 mm (2.8″ x 1.5″)
Package Included:
-
1 x LCD128x64 Full Graphics LCD Module
